Execution Plans

Reading execution plans is the most powerful skill for diagnosing slow queries. Knowing how to talk about them confidently separates developers who can tune SQL from those who can't.

What Is an Execution Plan?

An execution plan is SQL Server's "recipe" for how it will retrieve data. The query optimizer evaluates many possible plans and picks the one it estimates to be cheapest (in terms of I/O and CPU). The plan is then cached and reused.

There are two types: - Estimated execution plan — generated without running the query, uses statistics only - Actual execution plan — captured during real execution, shows actual vs estimated row counts

Always use the actual execution plan when diagnosing a slow query — the difference between estimated and actual row counts often reveals the root cause.

Enabling Execution Plans on macOS

Note: Azure Data Studio was retired on February 28, 2026. Use VS Code MSSQL or DataGrip.

Tool	Estimated plan	Actual execution plan
VS Code MSSQL	Right-click editor → Explain Current Statement	Right-click → Run Query with Actual Execution Plan
DataGrip	Right-click → Explain Plan → Explain Plan (or `Cmd+Shift+E`)	Right-click → Explain Plan → Explain Analyzed

After running, the graphical plan appears in the Execution Plan tab (VS Code) or Plan tab (DataGrip). Hover or click any operator node to see its full property sheet — estimated rows, actual rows, I/O cost, output column list.

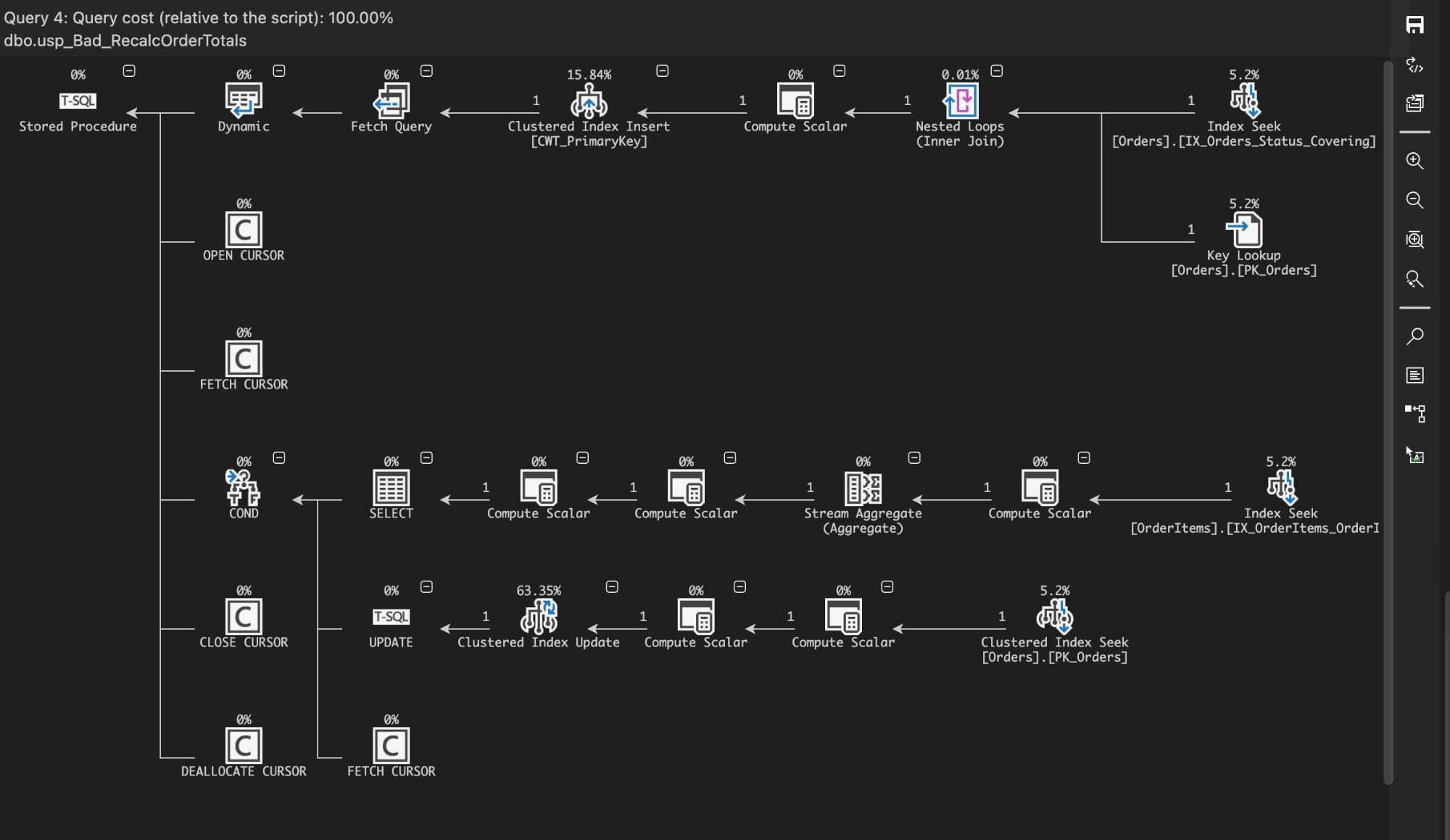

VS Code MSSQL actual execution plan

How to Read an Execution Plan

Plans are read right to left, top to bottom. Data flows left to the final output operator.

Each operator (node) shows: - Cost % — percentage of total query cost attributed to this operator - Estimated rows vs Actual rows — big discrepancy = stale statistics or parameter sniffing - Arrow thickness — proportional to row count between operators

Common operators:

Operator	Meaning
Index Seek	✅ Used an index to find specific rows — fast
Index Scan	⚠️ Scanned the entire index — may be OK for small tables
Table Scan	❌ No usable index, read every row in a heap table
Key Lookup	⚠️ Had to go back to clustered index for extra columns — covering index opportunity
Nested Loops	Join strategy — good for small outer sets with index seeks on inner
Hash Match	Join strategy — good for large, unsorted datasets (high memory)
Merge Join	Join strategy — efficient when both inputs are sorted on join key
Sort	Expensive if not on an indexed column
Spool	Temporary storage — often indicates optimizer is working around a problem
Parallelism	Query using multiple threads

Red Flags in Execution Plans

🔴 Table Scan on a Large Table

Table Scan (Cost: 87%)

A table scan reads every single row. On a large table, this is almost always a sign of a missing index or a non-SARGable predicate.

Fix: Add an appropriate index, or fix the WHERE clause to use an existing index.

🟡 Key Lookup

Index Seek → Key Lookup (Cost: 45%)

SQL Server found the row in a nonclustered index, but needed to go back to the clustered index to fetch extra columns not in the index.

Fix: Add the needed columns to the index as INCLUDE columns to make it a covering index.

🟡 Estimated vs Actual Row Count Mismatch

Estimated rows: 1  |  Actual rows: 450,000

The optimizer thought there'd be 1 row but got 450,000. This leads to a bad plan choice (e.g., nested loops instead of hash join). Usually caused by: - Stale statistics → run UPDATE STATISTICS - Parameter sniffing → see Parameter Sniffing - Multi-statement TVFs (always estimate 1 row in older SQL Server versions)

🟡 Sort Operator with High Cost

Sort (Cost: 62%)

Sorting is expensive and can't be parallelized the same way. If you frequently need sorted results, consider adding an index with the appropriate sort order.

🟡 Thick Arrows in Unexpected Places

Fat arrows = many rows. If you see a fat arrow going into a filter/join early in the plan, that means SQL Server is retrieving more rows than necessary before filtering. This often means the filter predicate isn't being pushed down through the plan.

Using `SET STATISTICS IO`

This is your primary tool for measuring I/O impact. It works identically in VS Code MSSQL and DataGrip — paste it at the top of any query window.

SET STATISTICS IO ON;
SET STATISTICS TIME ON;

EXEC dbo.GetCustomerOrders @CustomerID = 1234;

SET STATISTICS IO OFF;
SET STATISTICS TIME OFF;

The output appears in the Messages tab (VS Code MSSQL) or the Output panel (DataGrip):

Table 'Orders'. Scan count 1, logical reads 3842, physical reads 0,
read-ahead reads 0, lob logical reads 0.

SQL Server Execution Times:
   CPU time = 234 ms,  elapsed time = 412 ms.

What to look at: - Logical reads — pages read from the buffer cache. 1 page = 8 KB. High logical reads = lots of data being processed. - lob logical reads — pages read for NVARCHAR(MAX) / VARBINARY(MAX) columns. Often surprisingly large when SELECT * is used. - Physical reads — pages read from disk (buffer cache miss). High = data not yet cached. - Scan count > 1 on the same table in a loop = possible missing index or cursor issue.

Benchmark improvements: Before and after optimization, compare logical reads. A good optimization often drops logical reads by 10× or more.

Execution Plan Cache

Plans are cached in the plan cache (part of the buffer pool). You can query it:

-- Find cached plan for a specific stored procedure
SELECT
    qs.execution_count,
    qs.total_logical_reads,
    qs.total_elapsed_time,
    qp.query_plan
FROM sys.dm_exec_procedure_stats ps
CROSS APPLY sys.dm_exec_query_plan(ps.plan_handle) qp
CROSS APPLY sys.dm_exec_sql_text(ps.sql_handle) st
WHERE OBJECT_NAME(ps.object_id) = 'GetCustomerOrders';

Clearing the plan cache (dev/test only, never production):

-- Clear entire plan cache — dev/test ONLY, major performance impact on prod
DBCC FREEPROCCACHE;

-- Clear cache for a specific plan
DBCC FREEPROCCACHE (plan_handle);

Workflow: Diagnosing a Slow Stored Procedure (macOS)

1. Open your query client (VS Code MSSQL or DataGrip)
2. Enable actual execution plan (see table above for your tool)
3. Add to the top of your query window:
      SET STATISTICS IO ON;
      SET STATISTICS TIME ON;
4. Run the stored procedure
5. Check Messages tab (VS Code MSSQL) or Output panel (DataGrip):
   - Which table has high logical reads?
   - Any lob logical reads? → SELECT * pulling NVARCHAR(MAX)
6. Check the Execution Plan tab / Plan tab:
   - Any Table Scans on large tables? → missing index or non-SARGable predicate
   - Any Key Lookups? → add INCLUDE columns to the index
   - Estimated vs Actual row mismatch? → stale statistics or parameter sniffing
   - Thick arrows before a filter? → predicate not pushed down
   - Compute Scalar calling a UDF? → inline the logic as a JOIN
   - No parallelism operators on a heavy query? → scalar UDF or MAXDOP hint
7. Address the highest-cost operator first
8. Re-run and compare logical reads before/after
9. Repeat until satisfactory
